Name: GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable
Brand: Sichuan Yuantong Communication Co., Ltd.
SKU: GJXH-2B6A2
Price: 46.01 USD
Availability: InStock

Σπίτι > προϊόντα > ftth καλώδιο πτώσης ινών >

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Place of Origin:

China

Μάρκα:

YUANTONG

Πιστοποίηση:

ISO

Model Number:

GJXH-2B6A2

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Λεπτομέρειες για το προϊόν

Installation Method:

Indoor

Reinforcing parts:

Phosphated steel wire 0.42

Minimum bending radius:

Dynamic 30mm Static 15mm

Optical cable size:

2.0mm*3.0mm

Optical cable length:

1000m

Optical cable color:

Black

Fiber Color:

blue orange

Shape:

Bow Shape

Packing:

drum with carton

Crush Resistance:

500N/100mm

Optical cable sheath:

LSZH/pvc

Όροι πληρωμής και αποστολής

Packaging Details

Packed in cartons and pallets

Delivery Time

3-4 work days

Supply Ability

500KM/day

ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable

Πάρτε την καλύτερη τιμή

Βίντεο

GJXH 2 πυρήνες FTTH εσωτερικό LZSH κάλυψη καλώδιο οπτικών ινών καλώδιο πτώσης

Πάρτε την καλύτερη τιμή

Βίντεο

Black messenger wire FTTH optical cable, 4-core, used for communication construction

Πάρτε την καλύτερη τιμή

4 πυρήνες Frp επίπεδες στρογγυλοί χαλαροί σωλήνες FTTH καλώδιο πτώσης ινών για εξωτερική χρήση

Πάρτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

+86 159 2815 7093

Sales03@chinafibercable.com

86-28-85050348

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

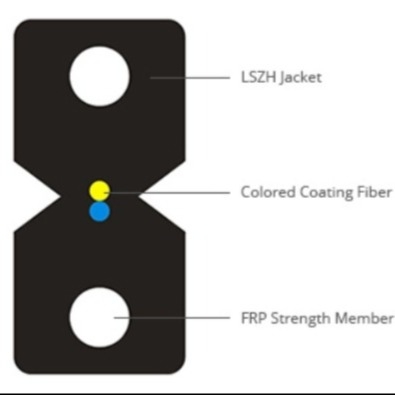

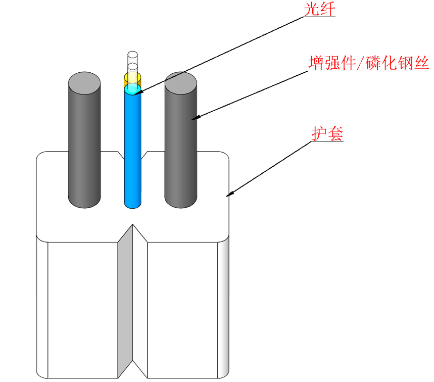

Product Description:GJXH-2B6a2 Metal reinforcing components, LSZH outer sheath, butterfly-shaped introduction optical cable.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable 0

Laying method:Indoor wiring, etc.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable 1

Application scope: Suitable for FTTX system wiring, as well as prefabricated pigtails, etc.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable 2

Execution standard: YD/T 1997-2022 Butterfly-shaped introduction Optical cable for Access networks.

Product features:

① Special flexible optical fibers provide large bandwidth and excellent communication transmission characteristics;

② Two parallel FRP or steel wires have excellent compressive resistance, protecting the optical fiber.

③ The unique groove design makes it easy to separate, convenient to join, and simplifies installation and maintenance.

④ Small outer diameter, light weight, simple structure, strong practicality and affordable price;

⑤ Most sheath materials adopt low smoke zero halogen (LSZH) flame-retardant outer sheaths, with smooth outer skins that are environmentally friendly and odorless.

⑥ Butterfly-shaped introduction optical cables are the best choice for the wiring optical cables of FTTX fiber-to-the-home systems.

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable 4

Technical parameters:

GJXH 2 Cores FTTH Indoor LZSH Sheath Fiber Optic Cable Drop Cable 5
